OpenTargets API

The OpenTargets API allows to extract information about drugs and diseases associated to a single target (either a gene or a disease). Currently OpenTargets only supports single queries.

Target endpoint

To plot the diseases associated to a target (i.e. PLG) you can use the plot_diseases function that takes as input either an Ensemble ID or an Entrez gene ID. To use Entrez IDs set entrez = True. You can also specify the max hits you want to show, as well as the height and width of the plot.

# OpenTargets takes EnsembleIDs by default, but entrez ids can be
# passed using the argument entrez = True
# Export plots easily in png or svg
OpenTargets.plot_diseases(target_id = 'PLG', entrez = True)
alternate text

Results can also be returned as dictionary.

OpenTargets.get_associated_diseases(target_id = 'ACE2', entrez = True)

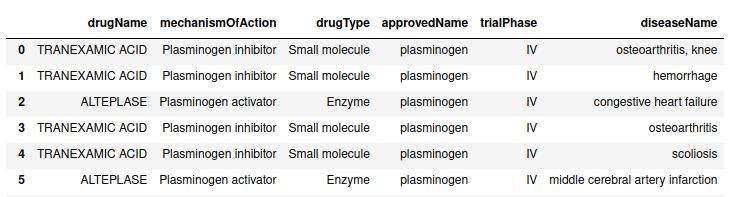

Users can get table with the drugs associated to a particular target and use it for downstream analysis. The table will show information about the drug name, mechanism of action, drug type, approved name, the trial phase the drug is involved in and the diseases that are associated to those targets and drugs.

OpenTargets.get_table_drugs(target_id = 'PLG', entrez = True)
alternate text

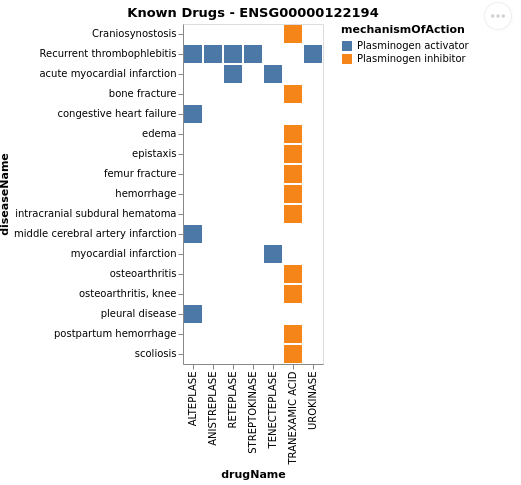

The results can be visualised and exported as png or svg.

# Plot drugs and diseases associated to a given target
OpenTargets.plot_drugs_disease(target_id = 'PLG', entrez = True)
alternate text

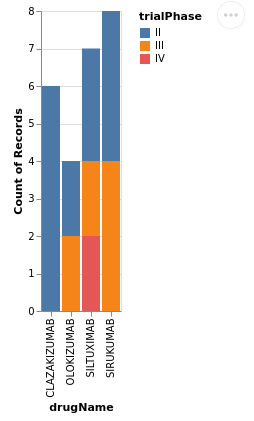

Information about trial phases can also be plotted and exported

plotDrugsPhase(target_id = "ENSG00000136244")
alternate text

Get a description of the biological function

Get a description of the biological function of a target of interest. This function returns a dictionary with the target Ensemble ID, the approved symbol, the biotype and a function description.

OpenTargets.function_description("ENSG00000136244")

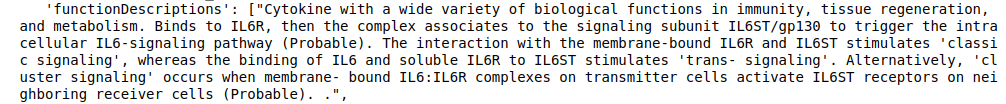

Below an example of function description retrieved from Open Targets

alternate text
